VMS Racing Pro Series CNC MACHINED billet aluminum fuel rail for the Honda H22, H23, and F22 engines.
VMS Racing high volume fuel rails are CNC-machined from T6061 billet aluminum. The fuel rails feature a 1/2" inch fuel bore that is capable of flowing enough fuel to easily support 1,000+ Horsepower. This large bore also dampens back pressure pulses created by larger injectors and will work perfectly with stock injector sizes. Easy to drill. The VMS Racing fuel rail comes with fittings to retain stock fuel lines.

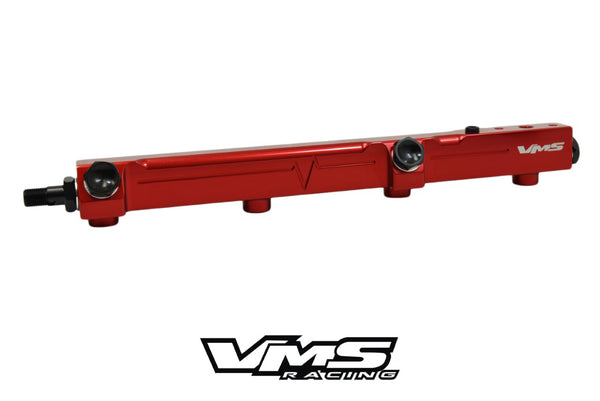

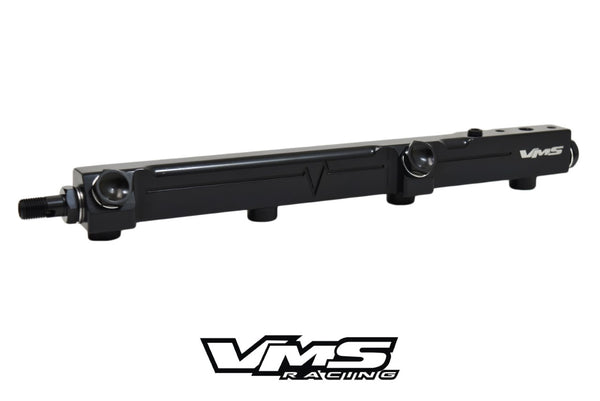

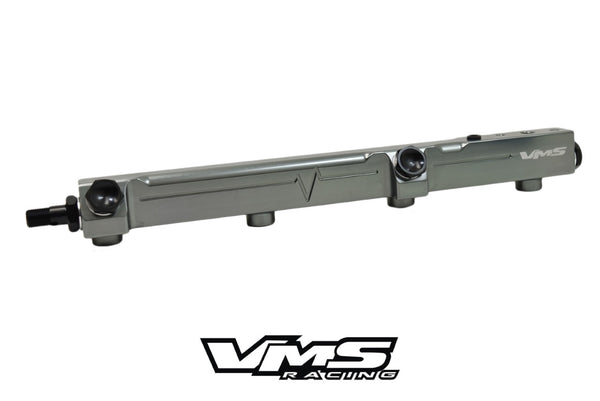

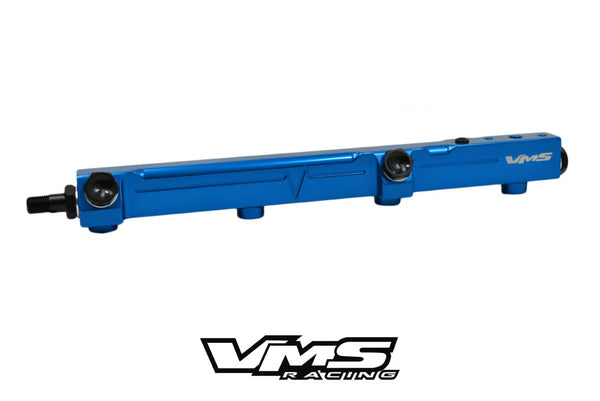

Available in red, blue, black and gun metal.
Features:
• No additional parts required for installation, installs with factory fuel line using supplied fittings.
• Internally they are a full 1/2” ID through the bore, easily capable of supporting over 1,000 HP.
• Will work with OEM fuel lines or custom fuel lines.
• -6AN or 9/16-18 ports. 4 total -6an ports.

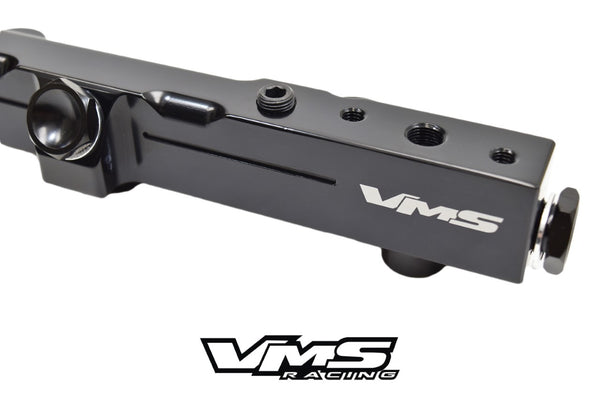

• 1/8 NPT port for nitrous or fuel pressure gauge
• Features full sized ports on each end for optimal injector supply and minimal hydraulic fluctuation.

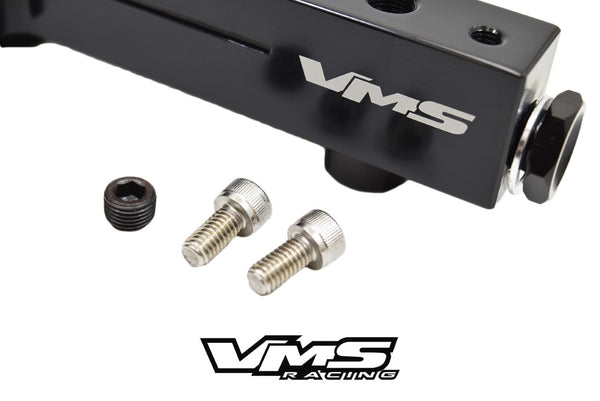

• All necessary hardware, fittings, and O-rings are included.
• Billet aluminum, CNC Machined construction for unsurpassed fit and finish.
• Type II bright dip anodized finish for great looks and corrosion protection.
Fits the following vehicles:
- 1990-1993 Accord DX 2.2L/2156cc F22A1
- 1990-1991 Accord EX 2.2L/2156cc F22A1
- 1990-1991 Accord EX2.2L/2156cc F22A4
- 1991-1993Accord EX 2.2L/2156cc F22A6
- 1990-1993 Accord LX 2.2L/2156cc F22A1
- 1991 Accord SE 2.2L/2156cc F22A6
- 1993 Accord SE2.2L/2156cc F22A6
- 1993 Accord 10th Anniversary 2.2L/2156cc F22A1
- 1997-2001 Prelude Type SH 2.2L/2156cc H22A4
- 1997-2001 Prelude 2.2L/2156cc H22A4
- 1992-1996 Prelude S 2.2L/2156cc H22A1
- 1995 Prelude SE 2.3L/2259cc H23A1
- 1992-1996 Prelude Si2.3L/2259cc H23A1
- 1992 Prelude Si 4WS 2.3L/2259cc H23A1
-1993-1996 Prelude VTEC 2.2L/2156cc H22A1
