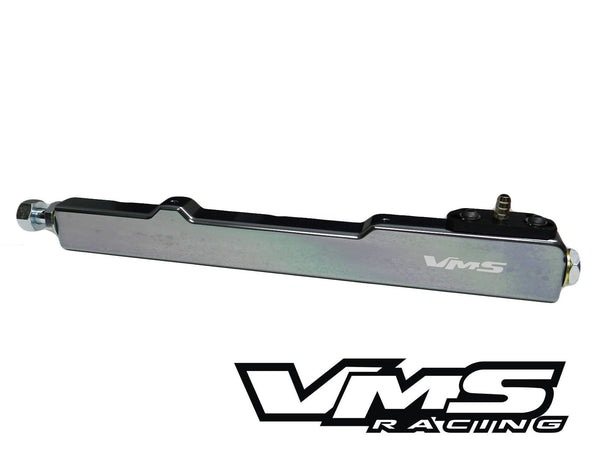

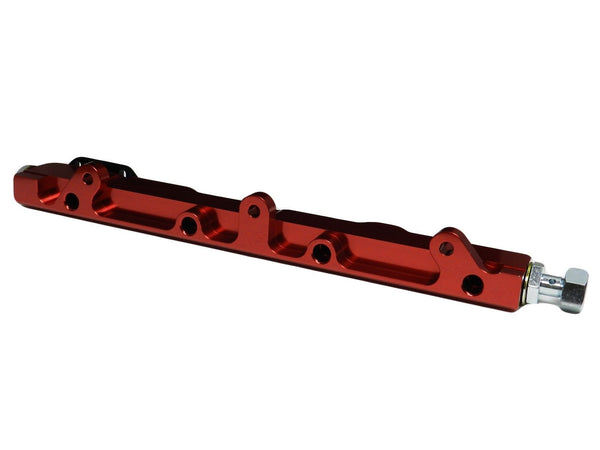

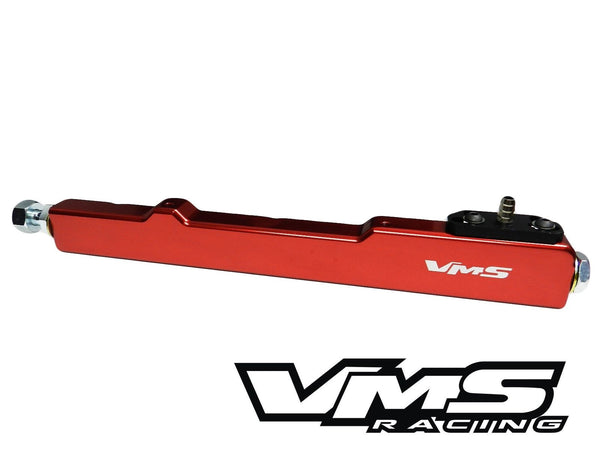

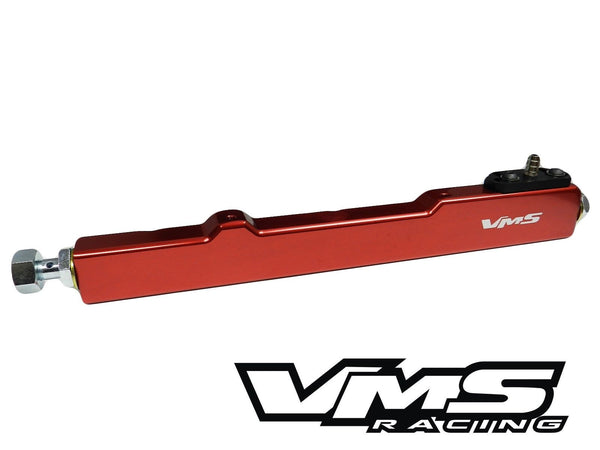

HONDA ACURA 1990-2001 DOHC INTAKE FUEL RAIL KIT BILLET ALUMINUM B16 B18 B20 VTEC AND NON-VTEC // PART # FR001

$ 68.95


VMS Racing CNC MACHINED billet aluminum fuel rail for the Honda DOHC (double overhead cam) B16, B18 and B20 engines.

NOTE: THIS WILL ONLY WORK WITH EXTERNAL MOUNTED FUEL PRESSURE REGULATORS SUCH AS VMS, AEM, AEROMOTIVE, SARD, ETC.

VMS Racing high volume fuel rails are CNC-machined from T6061 billet aluminum. The fuel rails feature a 5/8" inch fuel bore that is capable of flowing enough fuel to easily support 1,000+ Horsepower. This large bore also dampens back pressure pulses created by larger injectors and will work perfectly with stock injector sizes. Easy to drill.  The VMS Racing fuel rail comes with fittings to retain stock fuel lines. The threads on either side of the fuel rail is 16 X1.5MM .

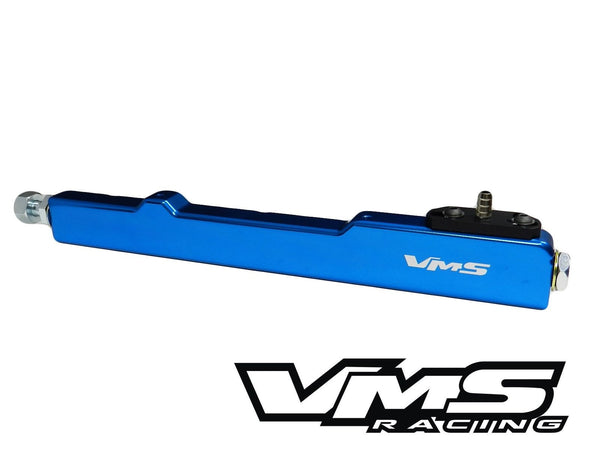

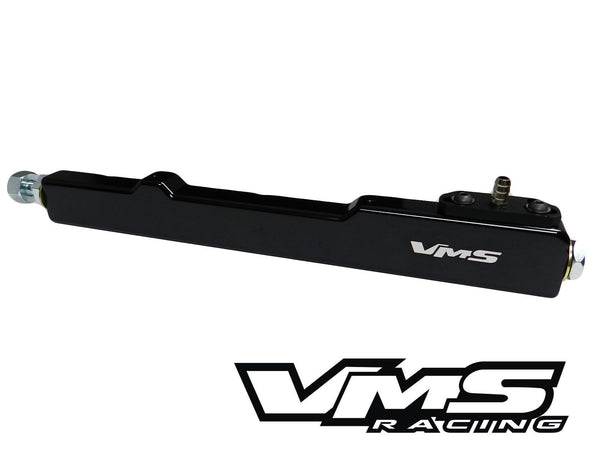

Available in blue, black and gun metal.

Features:

• External aftermarket adjustable fuel pressure regulator IS NEEDED to use this rail.
• Internally they are a full 5/8” ID through the bore, easily capable of supporting over 1,000 HP.
• 16 X 1.5MM inlet and outlets.
• Features full sized ports on each end for optimal injector supply and minimal hydraulic fluctuation.
• Billet aluminum, CNC Machined construction for unsurpassed fit and finish.
• Type II bright dip anodized finish for great looks and corrosion protection.
